8HP Cooling Continuous Foam Making Machine High Productivity
|
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Features: | High Efficiency, Stable Performance, Easy Operation | Voltage: | 220V/380V |
|---|---|---|---|
| Power: | 10kW-100kW | Application: | Foam Industry |
| Power Source: | Electric | Frequency: | 50Hz/60Hz |
| Highlight: | 8HP Cooling Continuous Foam Making Machine,Continuous Foam Making Machine High Productivity,High Productivity continuous foam production machine |
||

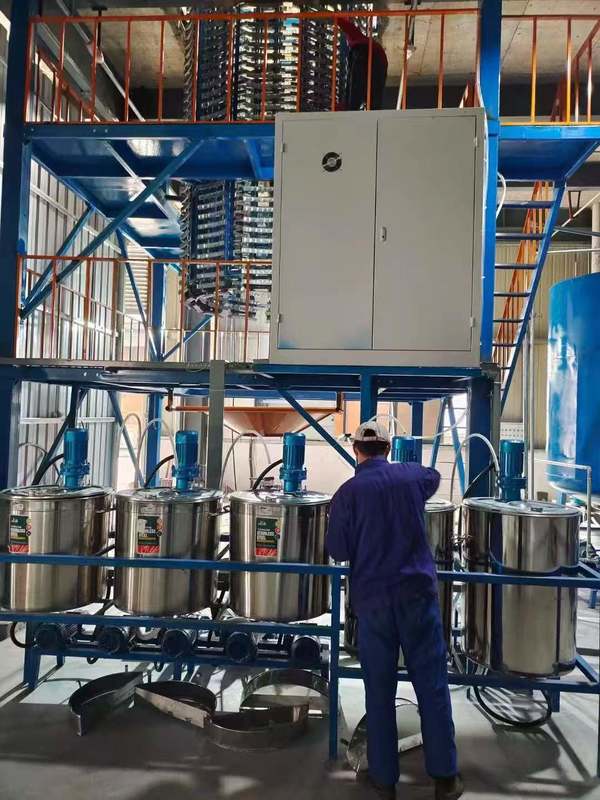

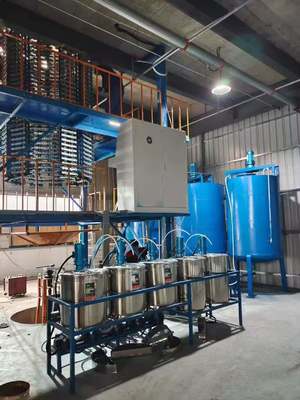

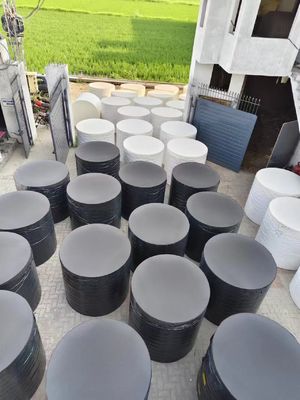

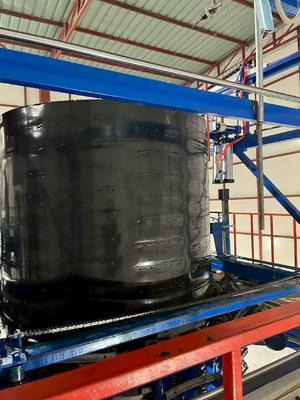

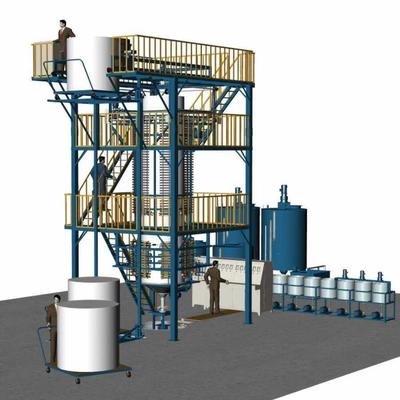

Our 1.3m diameter Foam Block Continuous Round Foam Machine can make foam block 1.3m diameter, density can be from 10kg/m3 to 40kg/m3, this round foam can be used in car foam industry, shoe foam industry, mattress foam industry, garment foam industry and so on
1.3m diameter foam block continuous foam block continuous foam machine includes Polyol, TDI, M.C, Water, Silicon, T9, A33 and color
Technical Specifications
| Delivery diameter | 1.3m |
|---|---|
| Delivery height | 8.5m |
| Lift speed | 1-1.8m/min |
| Foam density | 10-40kg/m3 |
| Mixing head power | 11kw |
| Mixing head rotate speed | 2800r/min |
| Total power | 45kw |
| Heat power | 15kw |
| Cooling capacity | 8HP |
| Foam flow capacity | 20-55kg/min |
| Main frame size | 3800*3800*8500mm |
