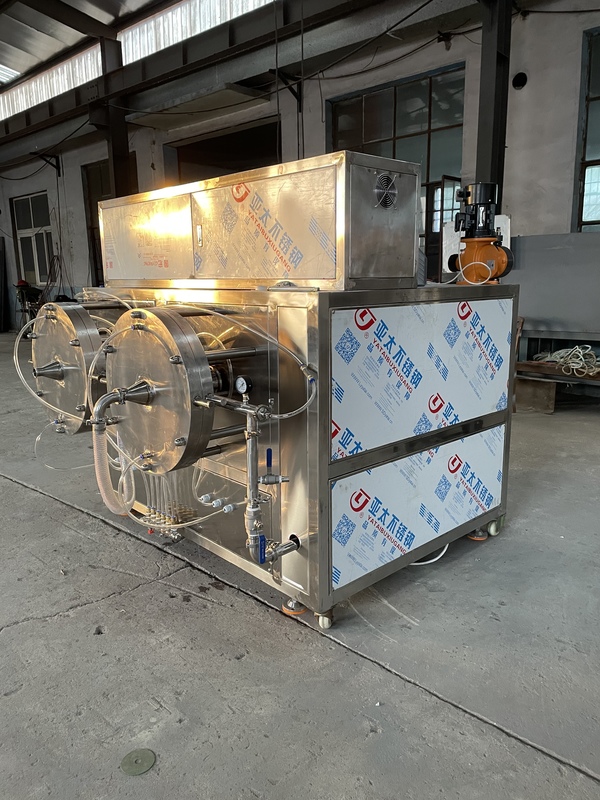

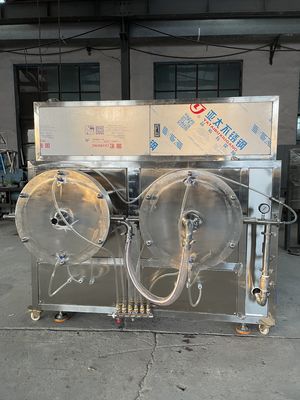

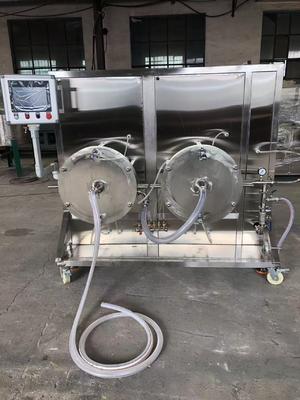

1200kg/H Output Capacity Latex Foam Machine Foam Making Machine Automated

Basic Properties
Place of Origin: China
Brand Name: HONGXINGWANG
Certification: CE
Model Number: HXW-LF-60
Trading Properties
Minimum Order Quantity: 1set
Payment Terms: L/C,T/T
Supply Ability: 100sets per year
Tags

latex foam making machine

latex foaming machine

pillow production line
Product Summary
1200kg output capacity Latex Foaming Machine Workflow Putting the above steps together, a typical latex foaming machine workflow is as follows: 1. Preparation: Set the recipe parameters on the HMI. 2. Batching: The control system activates, and the metering pumps precisely pump latex, foaming agent, ...

Product Details

Highlight:

1200kg/H Latex Foam Machine

,

1200kg/H Foam making Machine

,

automated Latex Foam Machine
Features: High Efficiency, Stable Performance, Easy Operation
Voltage: 220V/380V
Power: 10kW-100kW
Application: Foam Industry
Power Source: Electric
Frequency: 50Hz/60Hz
Product Description

1200kg output capacity Latex Foaming Machine Workflow

Putting the above steps together, a typical latex foaming machine workflow is as follows:

1. Preparation: Set the recipe parameters on the HMI.

2. Batching: The control system activates, and the metering pumps precisely pump latex, foaming agent, and vulcanizing agent.

3. Foaming: All raw materials and compressed air enter the foaming chamber, where the stirring motor rotates at high speed, whipping and aerating the mixture under constant temperature conditions.

4. Injection: After the set foaming time and pressure are reached, the injection valve opens, and the latex foam is injected into the mold.

5. Cleaning: After injection, the cleaning process automatically activates to clean the foaming chamber and piping, preparing for the next batch of production.

Thus, a high-performance latex foaming machine is a perfect combination of precision mechanics, pneumatics, automated control, and chemical processes. The coordinated operation and precise control of these components are key to producing high-quality latex products.





1200kg output capacity Latex Foaming Machine Basic Data:



1.output capacity: 1200KG/H
2.density；30-100KG
3.foaming rate；10-15
4. temperature；20 degree
5.mixing head；304SS,Dia.600mm
6.mixing head driving: taiwan
7.air flow: china
8.metering pump
9.motor；3.75KW
10.size: 1300X1600X1500mm
11.weight；1100KG
