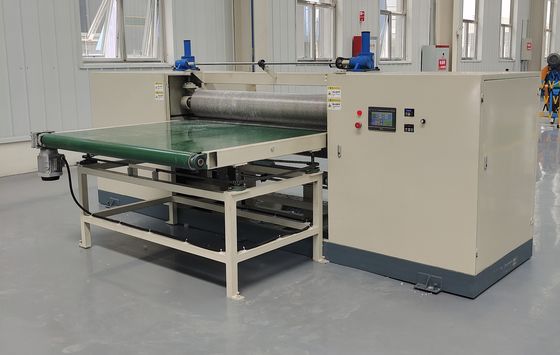

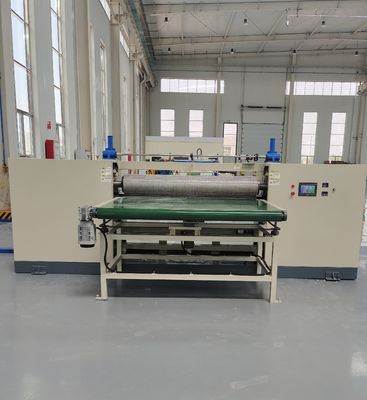

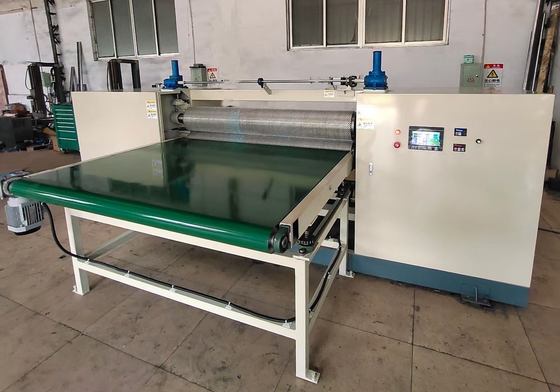

1650mm Width Foam Profile Cutting Machine 0-20m/Min Cutting Speed
|
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Features: | High Efficiency, Stable Performance, Easy Operation | Voltage: | 220V/380V |
|---|---|---|---|
| Power: | 10kW-100kW | Application: | Foam Industry |
| Power Source: | Electric | Frequency: | 50Hz/60Hz |
| Highlight: | 1650mm Width Foam Profile Cutting Machine,20m/Min Foam Profile Cutting Machine,Foam Cutting equipment 20m/Min |
||
1650mm width Foam Profile Cutting Machine Core Working Principle:
A flat, foamed and sliced sponge sheet is fed between a steel roller engraved with a specific pattern and an elastic support roller. Under the combined effects of pressure and tension, the sponge is briefly compressed, shaping its surface into a three-dimensional pattern that perfectly matches the pattern of the roller, ultimately establishing its shape.
1650mm width Foam Profile Cutting Machine technical data:
|
Maximum cutting width |
1650mm |
|
Foam thickness |
50-100mm |
|
Cutting speed |
0-20m/min |
|
Rotating speed |
0-25r/min |
|
Motor power |
9.7kw |
|
Machine weight |
1600kg |
|
Machine size |
4600mm*1000mm*1500mm |
