Diameter 1.6m Batch Foam Machine For Making Round Foam Block High Speed

Basic Properties
Place of Origin: CHINA
Brand Name: HONGXINGWANG
Certification: CE
Model Number: HXW-BF-3A
Trading Properties
Minimum Order Quantity: 1
Payment Terms: T/T,L/C
Supply Ability: 100SETS per year
Tags

continuous foam production machine

continuous foam making machine

foam block making machine
Product Summary
Batch Foam Machine for Making Round Foam Block with diameter 1.6m · Mixing head: · High-speed agitation: The most commonly used type. A high-speed rotating agitator shaft (speeds of up to 5,000-6,000 RPM or more) vigorously shears and mixes the raw materials. After mixing, the mixing head has a self...

Product Details

Highlight:

Diameter 1.6m Batch Foam Machine

,

High Speed Batch Foam Machine

,

Diameter 1.6m batch foaming machine
Features: High Efficiency, Stable Performance, Easy Operation
Voltage: 220V/380V
Power: 10kW-100kW
Application: Foam Industry
Power Source: Electric
Frequency: 50Hz/60Hz
Product Description

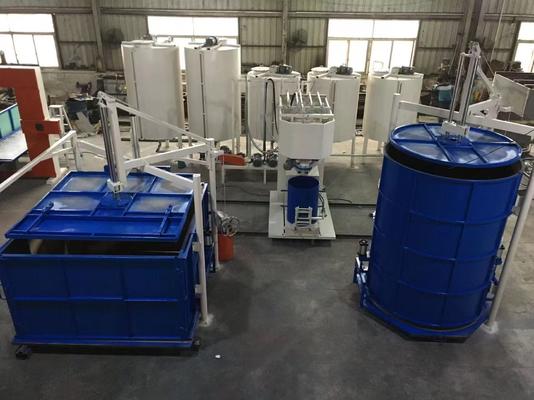

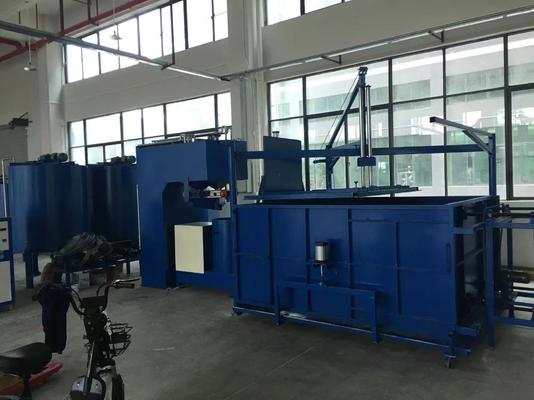

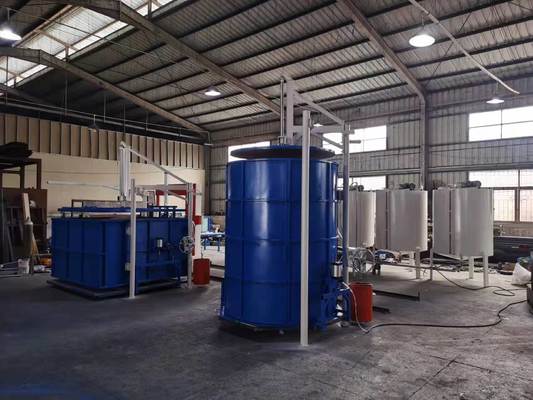

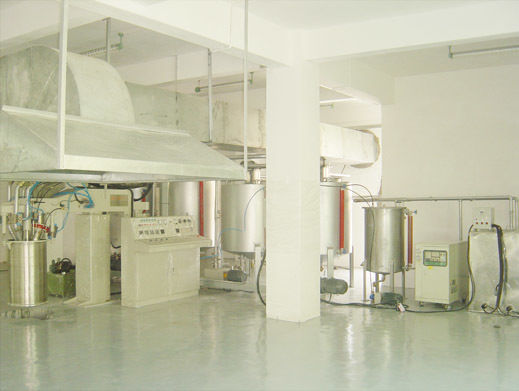

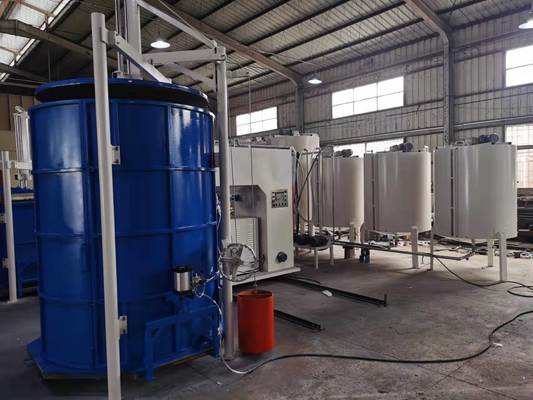

Batch Foam Machine for Making Round Foam Block with diameter 1.6m · Mixing head:

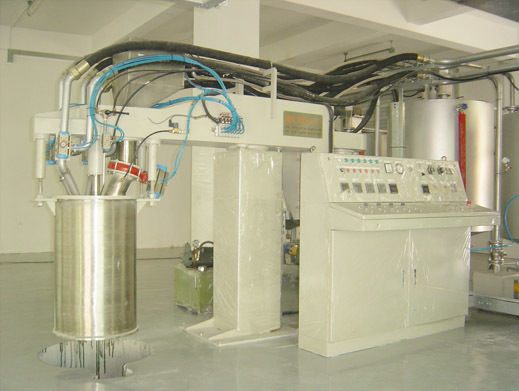

· High-speed agitation: The most commonly used type. A high-speed rotating agitator shaft (speeds of up to 5,000-6,000 RPM or more) vigorously shears and mixes the raw materials. After mixing, the mixing head has a self-cleaning function to prevent clogging.
· Pouring nozzle and oscillating mechanism: The mixed material flows out through the pouring nozzle. To ensure more even distribution of the raw materials within the foaming chamber, the pouring nozzle is usually mounted on a mechanism that automatically swings left and right.

Batch Foam Machine for Making Round Foam Block with diameter 1.6m Basic Data:

Application

Soft foam, HR foam, Memory foam

Foam density

10kg/m3-60kg/m3

PPG, POP and TDI Tank

2tons

Mixing head motor power

15kw

Total power

48kw

Cooling capacity

5HP

Mixing tank capacity

230L

Square Mould size

2050*1550*1250mm

Round mould size

Diameter:1500mm and height: 2100mm

Production capacity

5-6 foam blocks/h



Diameter 1.6m Batch Foam Machine For Making Round Foam Block High Speed
