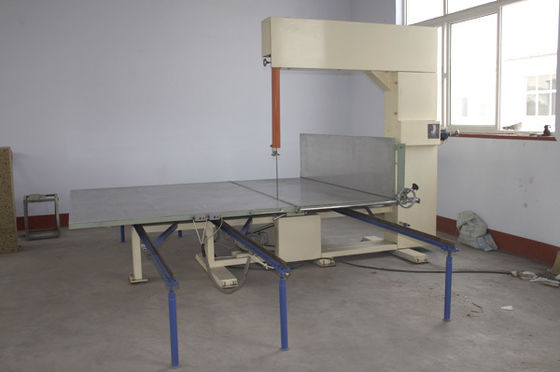

Manual Foam Cutting Machine With 7760mm Blade Simple Operation
|
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Features: | High Efficiency, Stable Performance, Easy Operation | Voltage: | 220V/380V |
|---|---|---|---|
| Power: | 10kW-100kW | Application: | Foam Industry |
| Power Source: | Electric | Frequency: | 50Hz/60Hz |
| Highlight: | 7760mm Blade Manual Foam Cutting Machine,Simple Operation Manual Foam Cutting Machine,Simple Operation manual foam cutter |
||
Manual Vertical Foam Cutting Machine Workflow
1. Preparation: Place a large sponge on the workbench, with one side against the retaining plate and the other against the push plate.
2. Setting: Enter the slice thickness and number of slices on the touchscreen.
3. Start: Press the start button.
4. Cutting: The cutting motor activates, and the blade rotates at high speed. The blade carriage drives the blade through a single cut, severing the frontmost sponge.
5. Feed: The servo motor drives the ball screw, which enables the push plate to precisely advance the remaining sponge by the thickness of a slice.
6. Loop: Repeat steps 4 and 5 until the desired number of slices is completed, automatically stopping.
Manual Vertical Foam Cutting Machine Basic Data:
|
Model |
HXW-LQ-4L |
|
Cutting height |
1200mm |
|
Blade length |
7760mm |
|
Inner worktable size(W×L) |
1360×2440mm |
|
Outer worktable size(W×L) |
1800×2440mm |
|
Motor power |
1.75kW |
|
Machine weight |
1500kg |
|
Machine external size(L×W×H) |
4600*4000*2400mm |
