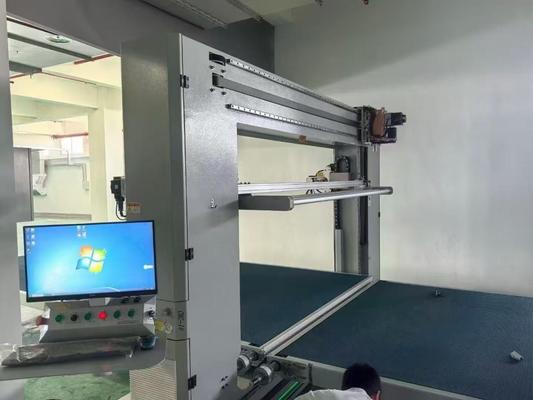

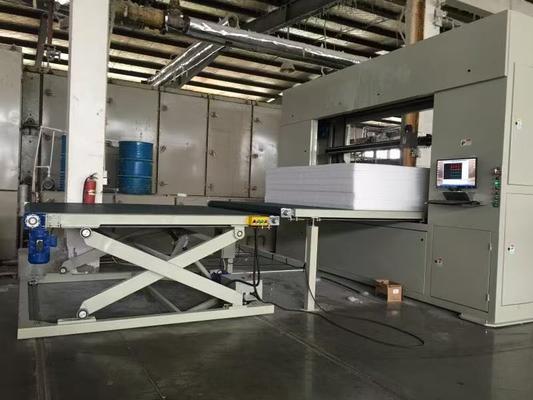

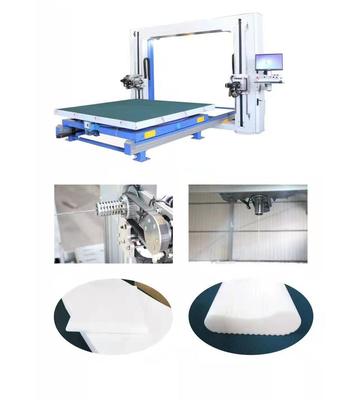

High Speed Vertical Sponge Cutting Machine 4500mm*1800mm*1000mm

High Speed Vertical Sponge Cutting Machine Features:

l Belt working table

l Self-checking system

l Blade broken protection system

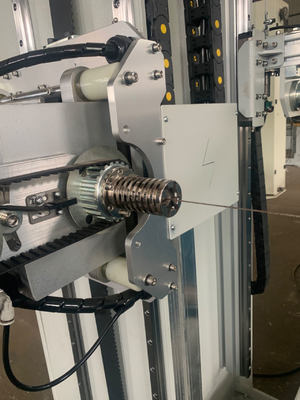

l Blade being sharpened by a motorized grinding device during the cutting procedure

l Windows control system with UK operating software

l Main blade working 45HZ

l Control panel have safety features(emergency switch, main panel switch)

l Blade guide rail power adjustable system

l Servo system power supply stabilizer

l Auto sensing system

l X+Y+Z Axis Servo Motor: ESTUN brand

 High Speed Vertical Sponge Cutting Machine Motion System
· Drive System: Typically uses a precision ball screw or rack and pinion to achieve high-precision, high-speed linear motion.
· Guide Rail: High-precision linear guides are used to ensure smooth, backlash-free, and low-friction motion.
· Drive Axis: Typically a three-axis (X, Y, Z) system.
· X/Y Axis: Controls the horizontal movement of the cutting head, determining the contour of the cut surface.
· Z Axis: Controls the vertical movement of the cutting head, used for adjusting cutting depth, performing three-dimensional curved surface cutting, and picking up the cutter head for air movement.

High Speed Vertical Sponge Cutting Machine  workflow:

programming → material fixation → automated cutting → finished product removal. Each step relies on the precise coordination of these components, ultimately achieving efficient, high-quality, and flexible automated processing of sponge materials.

High Speed Vertical Sponge Cutting Machine  Control System

1. CNC System
· Function: Serves as the brain of the machine, receiving instructions (G-code) from the computer and controlling the movements of the servo motors and cutting head.
· Components: Includes a main controller, servo drives, servo motors, etc. It ensures that the cutting head moves strictly according to the preset path, speed, and depth.
2. Computer and Software
· CAD/CAM Software: Operators first use CAD software to design a product or import a 3D model. CAM software then converts the model into cutting path instructions (G-code) that the machine can understand.
· Nesting Software: A crucial function that automatically or manually arranges multiple patterns to be cut on the material sheet for optimal alignment, maximizing material utilization and minimizing waste.
· Control Software: Used to send G-code to the machine, monitor machine status in real time, and set cutting parameters (such as speed and cutter head type).

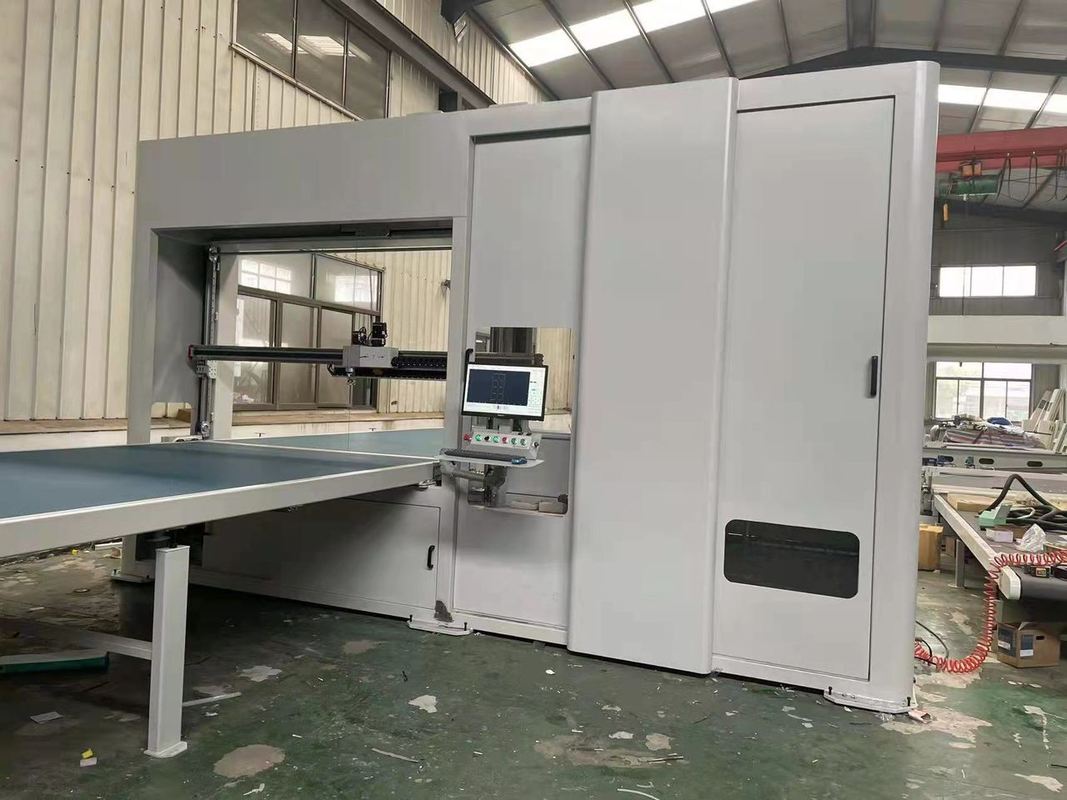

 High Speed Vertical Sponge Cutting Machine  Frame and Bed
· Function: Serves as the foundation of the entire machine and requires high stability and rigidity to resist vibrations during cutting and ensure precision.
· Material: Typically made of high-strength steel or aluminum alloy, precision welded, and stress-relieved

High Speed Vertical Sponge Cutting Machine  basic data:
