Foam Cell Openning Machine Fast Automated Foam Production Machine
Basic Properties
Place of Origin:
China
Brand Name:
Hongxingwang
Certification:
CE
Model Number:
HXW-OH-1500D
Trading Properties
Minimum Order Quantity:
1 set
Payment Terms:
T/T
Supply Ability:
20-30 sets per year
Product Summary
Foam Cell Openning Machine This Foam Cell Openning Machine is controlled by computer program, and the door is opened and closed automatically. Hydraulic control, automatic entry and exit of foam, greatly improve the efficiency of the production of gas ignition and explosion, save labor. Reduced ...
Product Details
Highlight:
Fast Foam Cell Openning Machine
,Automated Foam Production Machine
,Automated Foam Cell Openning Machine
Features:
High Efficiency, Stable Performance, Easy Operation
Voltage:
220V/380V
Power:
10kW-100kW
Application:
Foam Industry
Power Source:
Electric
Frequency:
50Hz/60Hz
Product Description

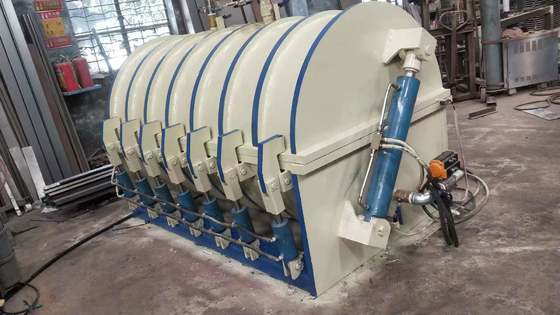

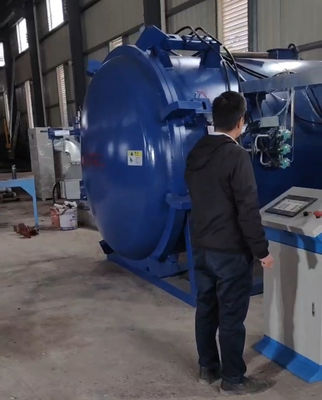

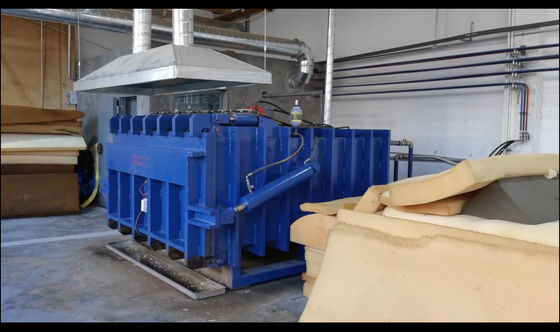

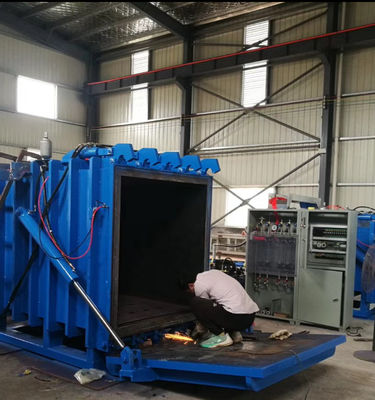

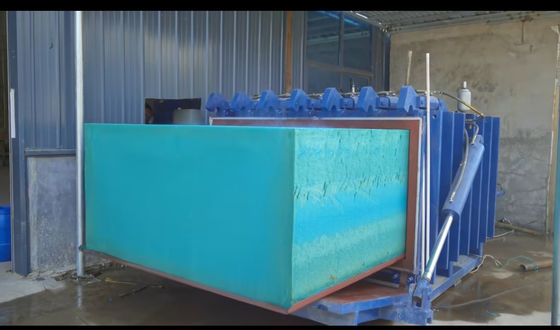

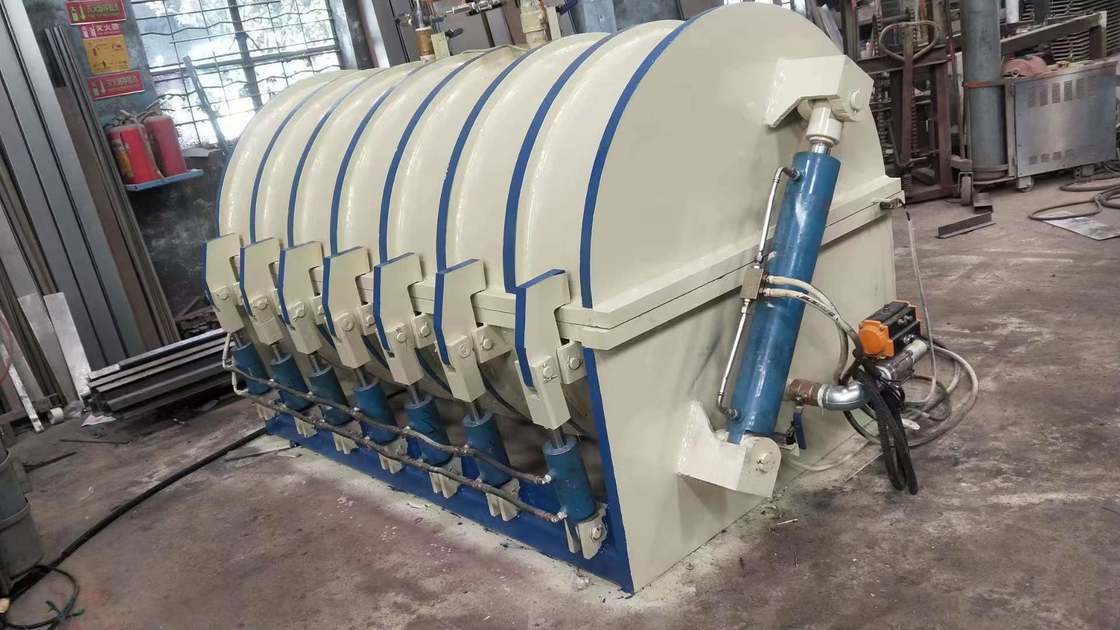

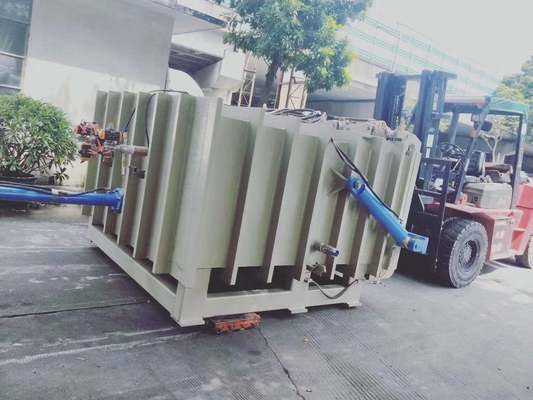

Foam Cell Openning Machine
This Foam Cell Openning Machine is controlled by computer program, and the door is opened and closed automatically. Hydraulic control, automatic entry and exit of foam, greatly improve the efficiency of the production of gas ignition and explosion, save labor. Reduced labor intensity, equipped with multiple security techniques; full protection device, handling sponge, safe and reliable
Foam Cell Openning Machine Safety Features
1. The housing is constructed of 60-gauge steel plate, with reinforcement plates constructed of 60-gauge steel plate.
2. Hydraulic locking and closing of the door.
3. Equipped with an explosion-proof membrane.
4. Equipped with an air injection overpressure detection function.
5. Self-locking function for improper operation.
6. Ignition stop function when the door is not securely locked.
Technical Specifications
| Main body tank thickness | 40mm carbon steel |
|---|---|
| Reinforcement material thickness | 20mm carbon steel |
| Vacuum pump power | 15kw |
| Chamber power | 7kw |
| Chamber size | L2050mmxW1550mmxH1050mm |
| One working process | 15-20min |
| Gas | hydrogen, oxygen and nitrogen |
