10-55kg/M3 Continuous Foam Machine With 9 Chemical Group Energy Efficient
|
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Features: | High Efficiency, Stable Performance, Easy Operation | Voltage: | 220V/380V |
|---|---|---|---|
| Power: | 10kW-100kW | Application: | Foam Industry |
| Power Source: | Electric | Frequency: | 50Hz/60Hz |
| Highlight: | 55kg/M3 Continuous Foam Machine,Energy Efficient Continuous Foam Machine,55kg/M3 foam block making machine |
||

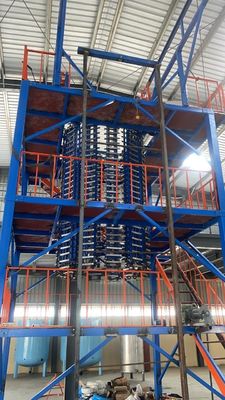

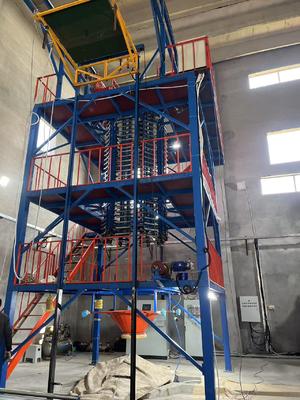

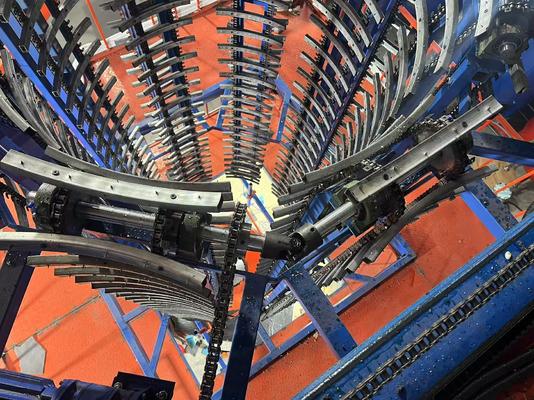

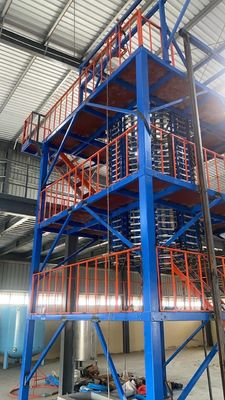

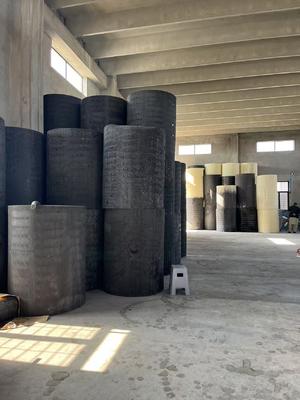

Our 1.2m diameter Foam Block Continuous Round Foam Machine can make foam block 1.2m diameter, density can be from 10kg/m3 to 55kg/m3, this round foam can be used in car foam industry, shoe foam industry, mattress foam industry, garment foam industry and so on

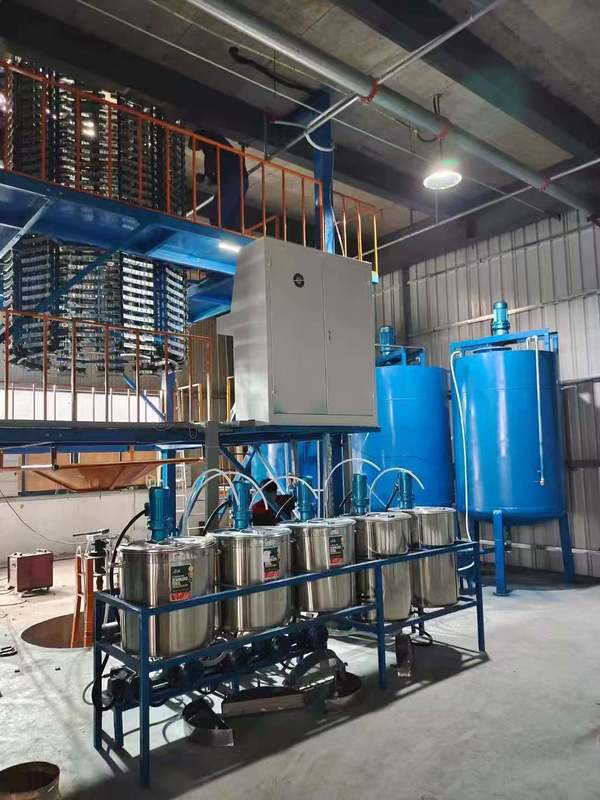

1.2m diameter foam block continuous foam block continuous foam machine with 9 chemicals group includes Polyol, TDI, M.C, Water, Silicon, T9, A33 , color and black color
Technical Specifications
| Delivery diameter | 1.2m |
|---|---|
| Delivery height | 8.5m |
| Lift speed | 1-1.8m/min |
| Foam density | 10-55kg/m3 |
| Mixing head power | 11kw |
| Mixing head rotate speed | 2800r/min |
| Total power | 45kw |
| Heat power | 15kw |
| Cooling capacity | 8HP |
| Foam flow capacity | 20-55kg/min |
| Main frame size | 3800*3800*8500mm |
