8-35kg/M3 Density Vertical Continuous Foam Production Machine 45kw
Basic Properties
Place of Origin:
China
Brand Name:
HONGXINGWANG
Certification:
CE
Model Number:
HXW-YP-1500
Trading Properties
Minimum Order Quantity:
1set
Payment Terms:
T/T
Supply Ability:
20-30 sets/year
Product Summary

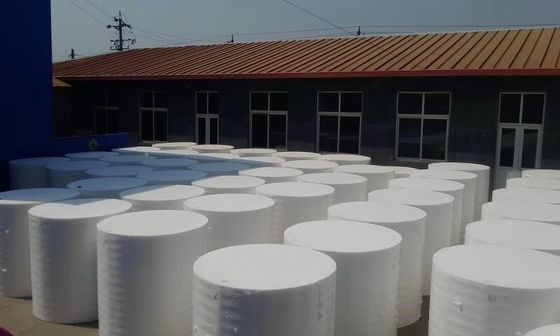

Our Continuous Round Foam Machine can make foam block diameter from 1.2m to 1.5m, density can be from 10kg/m3 to 55kg/m3, this round foam can be used in car foam industry, shoe foam industry, mattress foam industry, garment foam industry and so on Delivery diameter 1.5m/1.2m Delivery height 8.5 m ...
Product Details
Highlight:
Vertical continuous foam production machine
,35kg/m3 density Continuous Foam Production Machine
,35kg/m3 density Foam Making Machine
Features:
High Efficiency, Stable Performance, Easy Operation
Voltage:
220V/380V
Power:
10kW-100kW
Application:
Foam Industry
Power Source:
Electric
Frequency:
50Hz/60Hz
Product Description
Our Continuous Round Foam Machine can make foam block diameter from 1.2m to 1.5m, density can be from 10kg/m3 to 55kg/m3, this round foam can be used in car foam industry, shoe foam industry, mattress foam industry, garment foam industry and so on
|
Delivery diameter |
1.5m/1.2m |
|
Delivery height |
8.5 m |
|
Lift speed |
1-1.8m/min |
|
Foam density |
8-35kg/m3 |
|
Mixing head power |
11kw |
|
Mixing head rotate speed |
2800r/min |
|
Total power |
45kw |
|
Heat power |
15kw |
|
Cooling capacity |
8HP |
|
Foam flow capacity |
20-55kg/min |
|
Main frame size |
3800*3800*8500mm |
